| WORKING
PRINCIPLE :

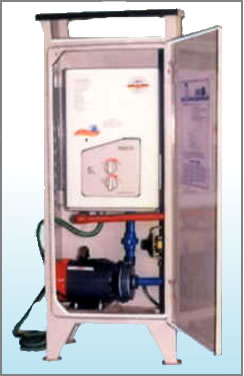

GAS GEYSER
INLET CONNECTED THROUGH PUMP AND PUMP
INLET THROUGH THE STORAGE TANK.
GAS GEYSER OUTLET
IS CONNECTED TO STORAGE TANK THIS WAY GAS GEYSER ENERGIES
AND COLD WATER IN THE TANK IS BEING HEATED UP. THERMOSTANT
IN THE INSULATED STORAGE TANK IS PROVIDED WHICH GOVERNS
THE OPERATION OF PUMP AT THE SET TEMPERATURE FROM OVERHEAD
COLD WATER STORAGE TANK INLET IS PROVIDED TO HOT WATER STORAGE
TANK. WHENEVER HOT WATER IS DRAWN FROM THE TANK SAME AMOUNT
OF COLD WATER ENTERS THE STORAGE TANK AND WHEN THE TEMPERATURE
IN THE HOT WATER TANK DROPS DOWN. AGAIN THERMOSTAT SENDS
SIGNAL TO THE PUMP AND PUMP
GETS O & ON GAS GEYSER
COMES IN OPERATION. WE HAVE TO PROVIDE
GAS CONNECTION TO THE GEYSER & ELECTRIC CONNECTION TO
THE PUMP THUS THE SYSTEMS WORKS
FULLY AUTOMATIC. |
